KAWASAKI, Japan–(BUSINESS WIRE)–Jul. 13, 2023
Toshiba Electronic Devices & Storage Corporation (“Toshiba”) has launched the "TRSxxx65H series,” the company’s third and latest[1] generation of silicon carbide (SiC) Schottky barrier diodes (SBDs) for industrial equipment. Volume shipments of the first 12 products, all 650V, start today, with seven products housed in TO-220-2L packages and five in DFN8×8 packages.
This press release features multimedia. View the full release here: https://www.businesswire.com/news/home/20230712192748/en/

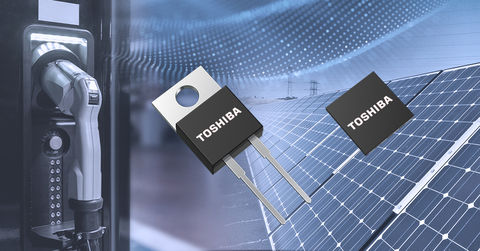

Toshiba: TRSxxx65H series, 3rd generation 650V SiC Schottky barrier diodes. (Graphic: Business Wire)
The new products use a new metal in a third generation SiC SBD chip that optimizes the junction barrier Schottky (JBS) structure[2] of the second generation products. They achieve industry-leading[3] low forward voltage of 1.2V (Typ.), 17% lower than the 1.45V (Typ.) of the previous generation. They also improve the trade-offs between forward voltage and total capacitive charge, and between forward voltage and reverse current, which reduces power dissipation and contributes to high efficiency of equipment.
Notes:
[1] As of July 2023.
[2] JBS structure lowers the electric field at the Schottky interface and reduces leakage current.
[3] As of July 2023, Toshiba survey.
Applications
- Switching power supplies
- EV charging stations
- Photovoltaic inverters
Features
- Industry-leading[3] low forward voltage: VF＝1.2V (Typ.) (IF=IF(DC))
- Low reverse current:
TRS6E65H IR＝1.1μA (Typ.) (VR=650V) - Low total capacitive charge:
TRS6E65H QC＝17nC (Typ.) (VR=400V, f=1MHz)
Main Specifications
|
(Unless otherwise specified, Ta=25°C) |
|||||||||||
|
Part number |
Package |
Absolute maximum ratings |
Electrical characteristics |
Sample Check & Availability |
|||||||
|
Repetitive peak reverse voltage VRRM (V) |
Forward DC current IF(DC) (A) |
Non-repetitive peak forward surge current IFSM (A) |
Forward voltage (pulse measurement) VF (V) |
Reverse current (pulse measurement) IR (μA) |
Total capacitance Ct (pF) |
Total capacitive charge QC (nC) |
|||||
|
Temperature conditions Tc (°C) |
f=50Hz (half-sine wave, t=10ms), Tc=25°C |
Square wave, t=10μs, Tc=25°C |
IF=IF(DC) |
VR=650V |
VR=400V, f=1MHz |
||||||
|
Typ. |
Typ. |
Typ. |
Typ. |
||||||||
|
TO-220-2L |
650 |
2 |
164 |
19 |
120 |
1.2 |
0.2 |
10 |
6.5 |
||
|
3 |
161 |
28 |
170 |
0.4 |
14 |
9 |
|||||
|
4 |
158 |
36 |
230 |
0.6 |
17 |
12 |
|||||
|
6 |
153 |
41 |
310 |
1.1 |
24 |
17 |
|||||
|
8 |
149 |
56 |
410 |
1.5 |
31 |
22 |
|||||
|
10 |
148 |
62 |
510 |
2.0 |
38 |
27 |
|||||
|
12 |
148 |
74 |
640 |
2.4 |
46 |
33 |
|||||
|
DFN8×8 |
4 |
155 |
28 |
230 |
0.6 |
17 |
12 |
||||
|
6 |
151 |
41 |
310 |
1.1 |
24 |
17 |
|||||
|
8 |
148 |
45 |
410 |
1.5 |
31 |
22 |
|||||
|
10 |
145 |
54 |
510 |
2.0 |
38 |
27 |
|||||
|
12 |
142 |
60 |
640 |
2.4 |
46 |
33 |
|||||
